Examples of simple mold design (this took about 30 hours to complete).



Click image to enlarge.

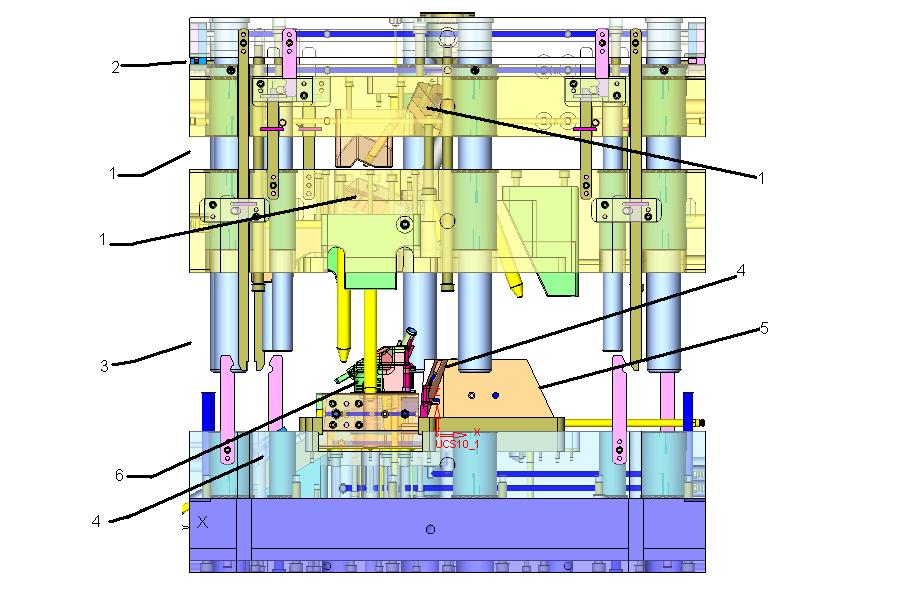

Mold Opens

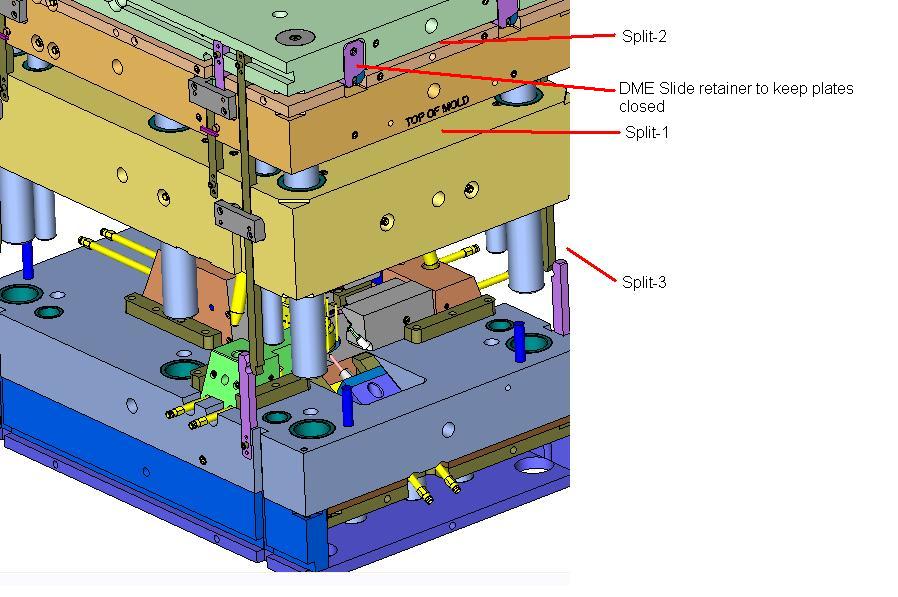

1. Parting line held closed by 1 set of Hasco Latch locks, causing 2 internal compound slides buried in A-Side to active three plate action held closed by DME slide retainers (clothes pins).

2. Second set of Latch Locks bottoms out, mold parting line still held closed, DME slide retainers release for runner and 3-plate gate drop.

3. First set of Latch Locks bottoms out, opening mold parting line.

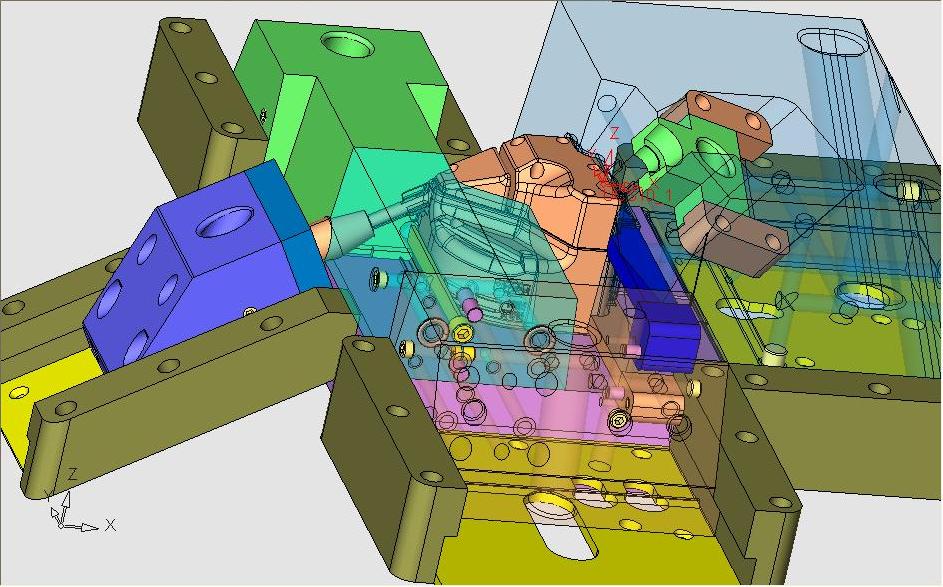

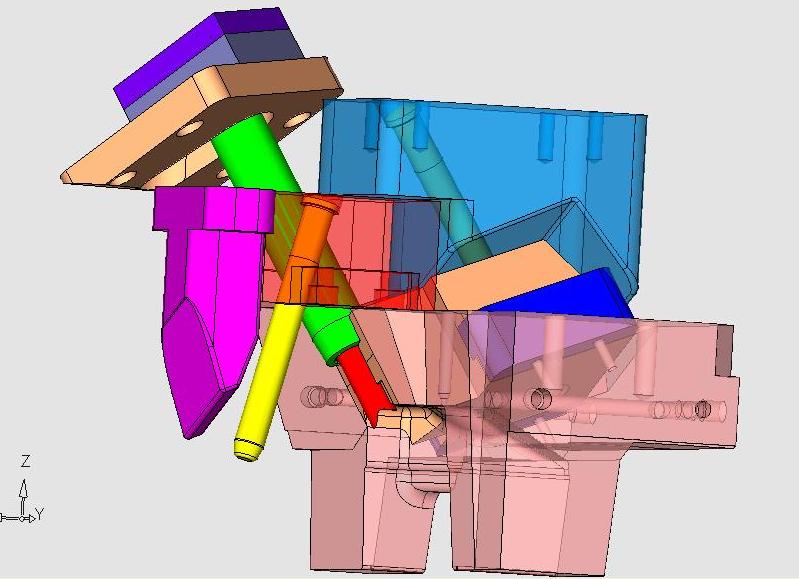

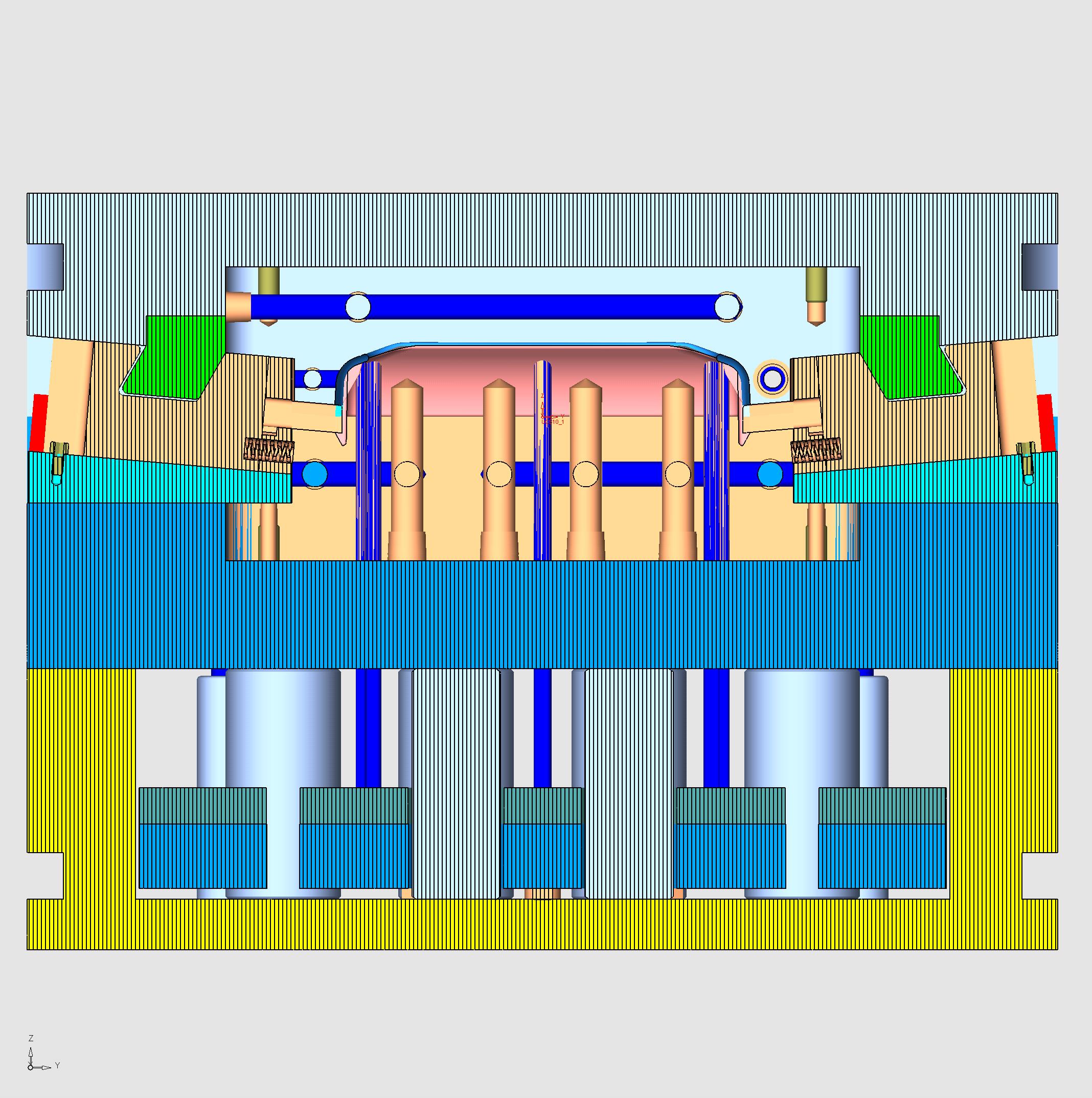

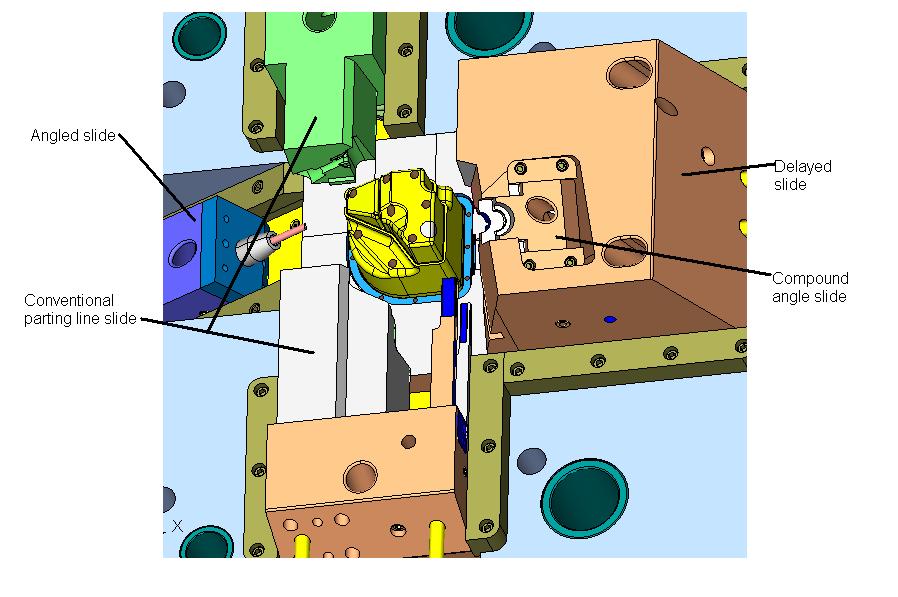

4. This forces a compound slide buried in a larger delayed slide, another slide running 30, and two parting line slides to open.

5. Mold continues and delayed slide opens.

6. Part ejects.

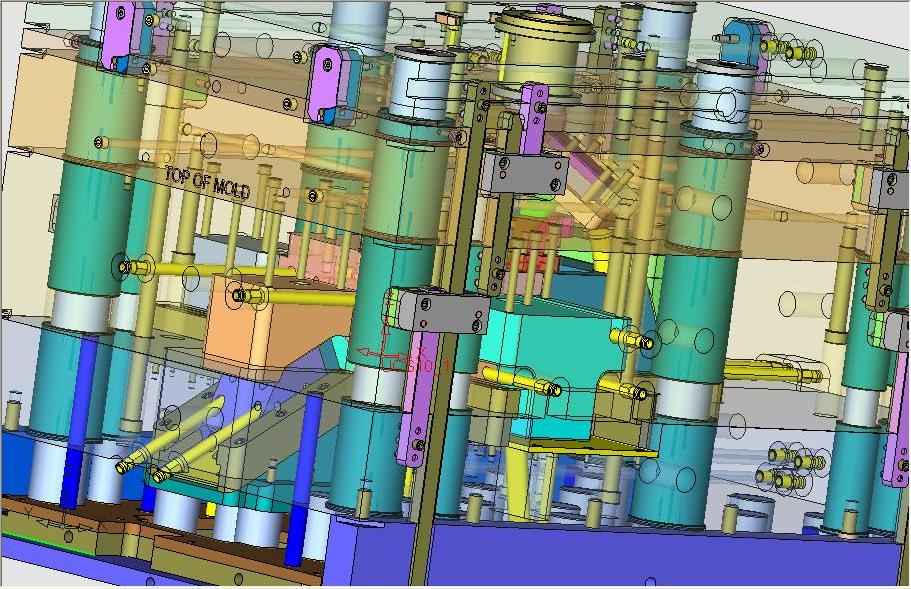

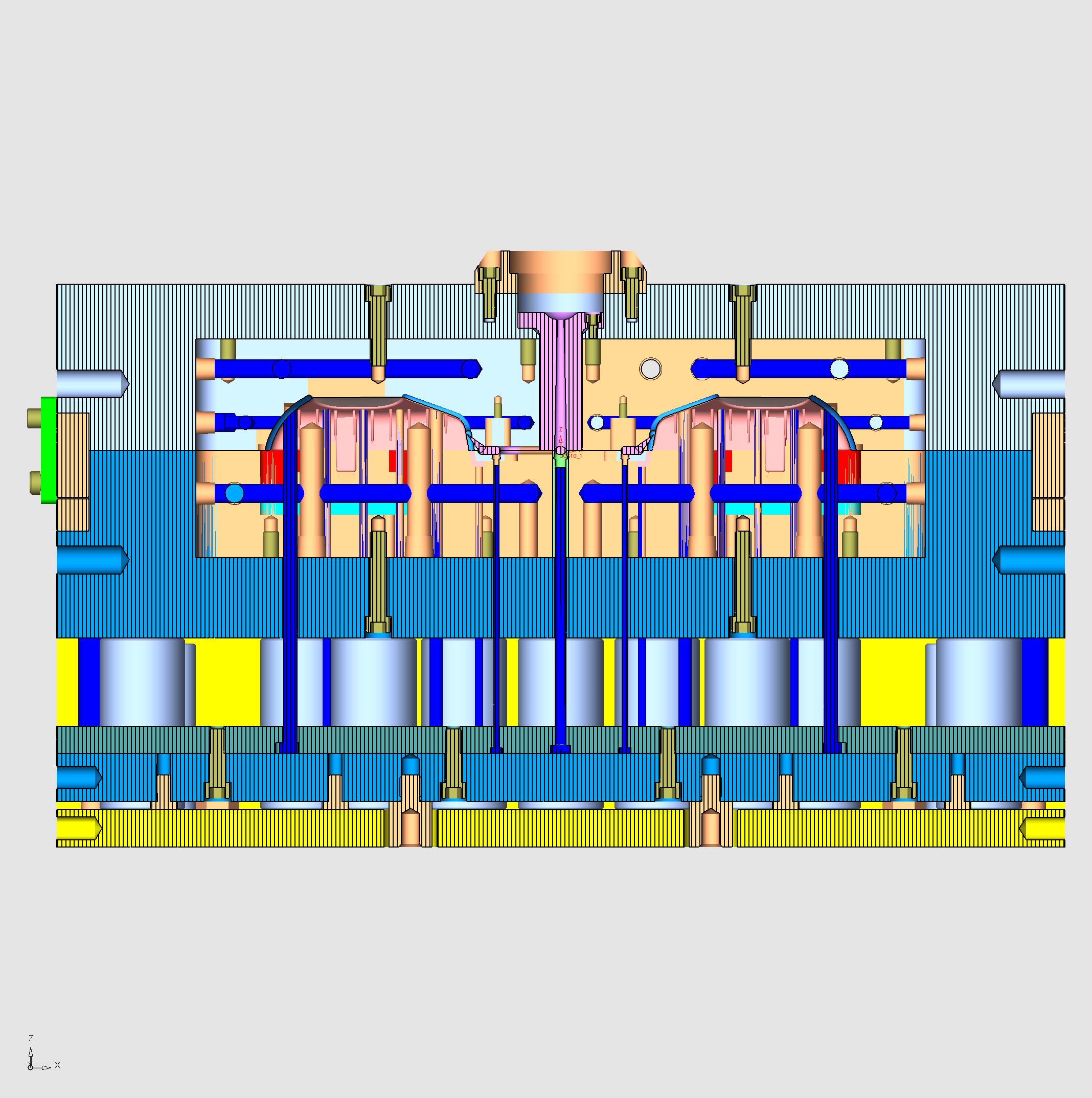

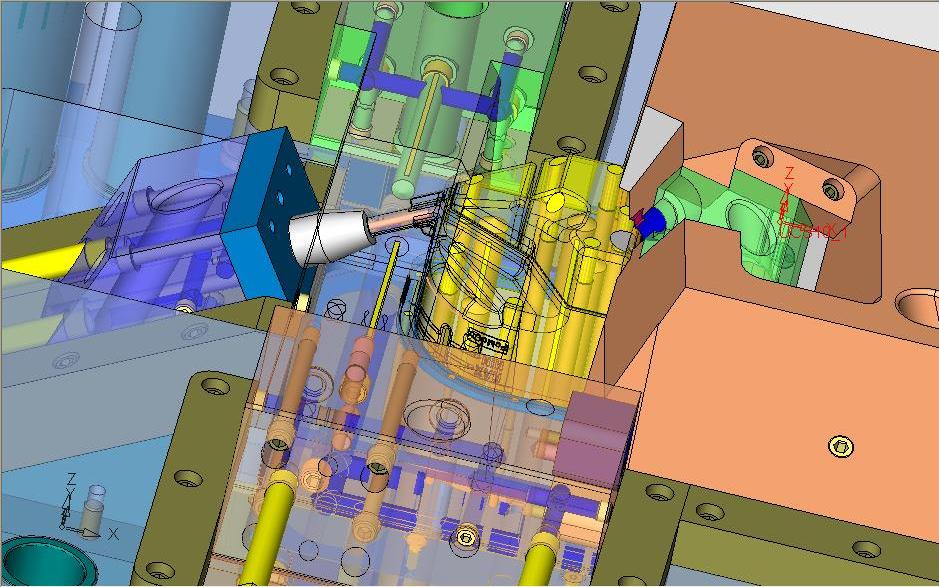

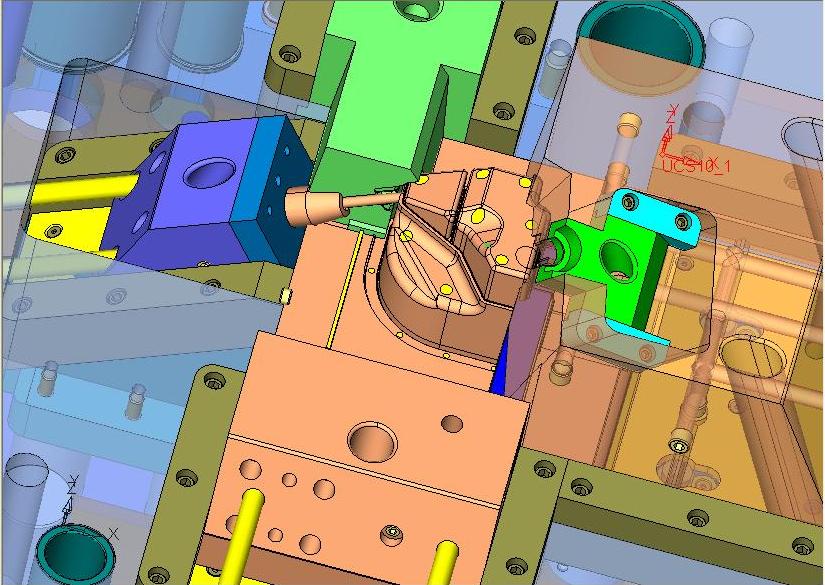

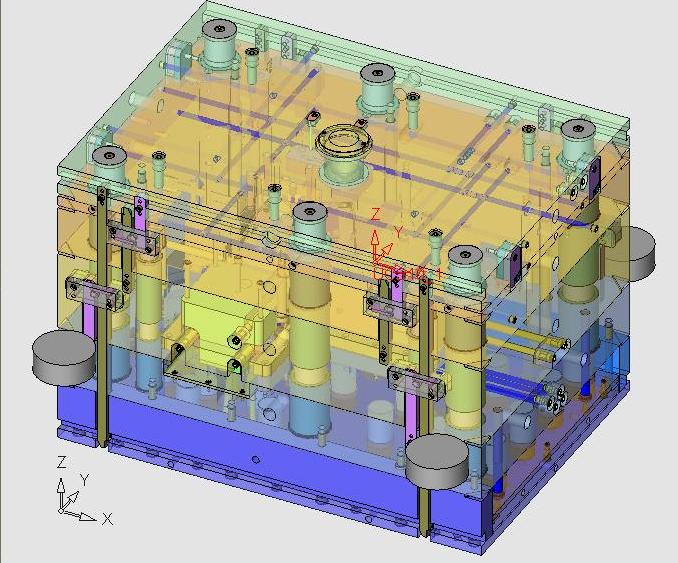

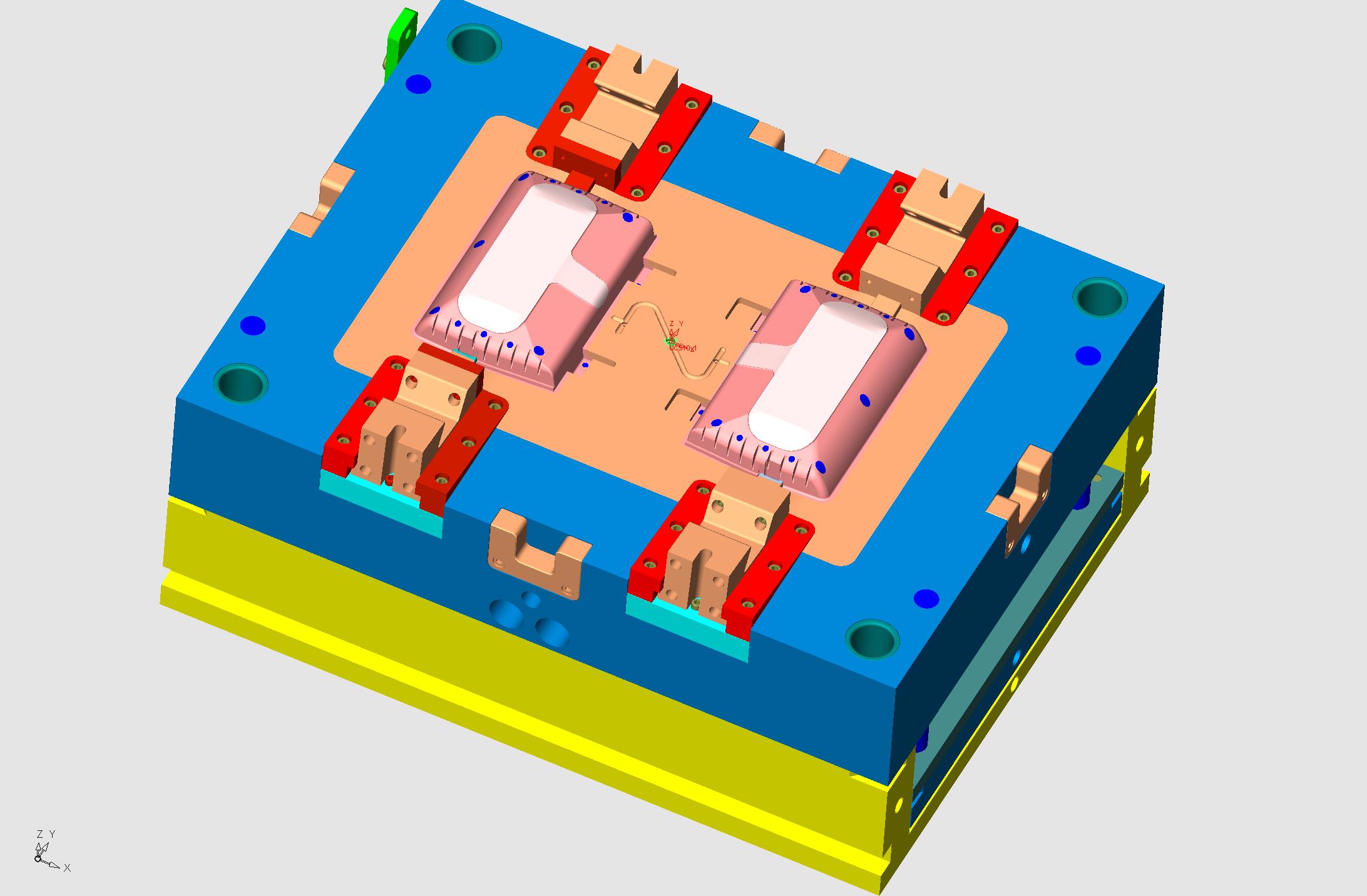

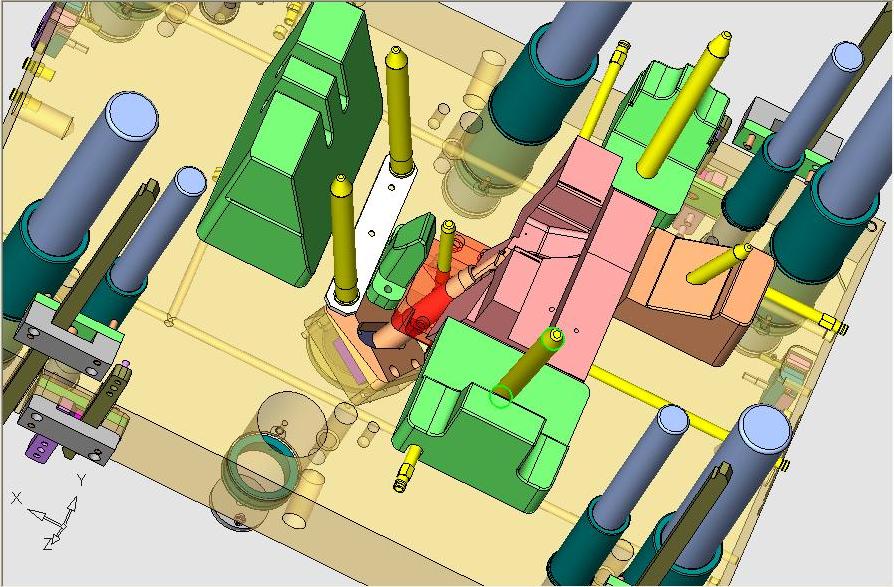

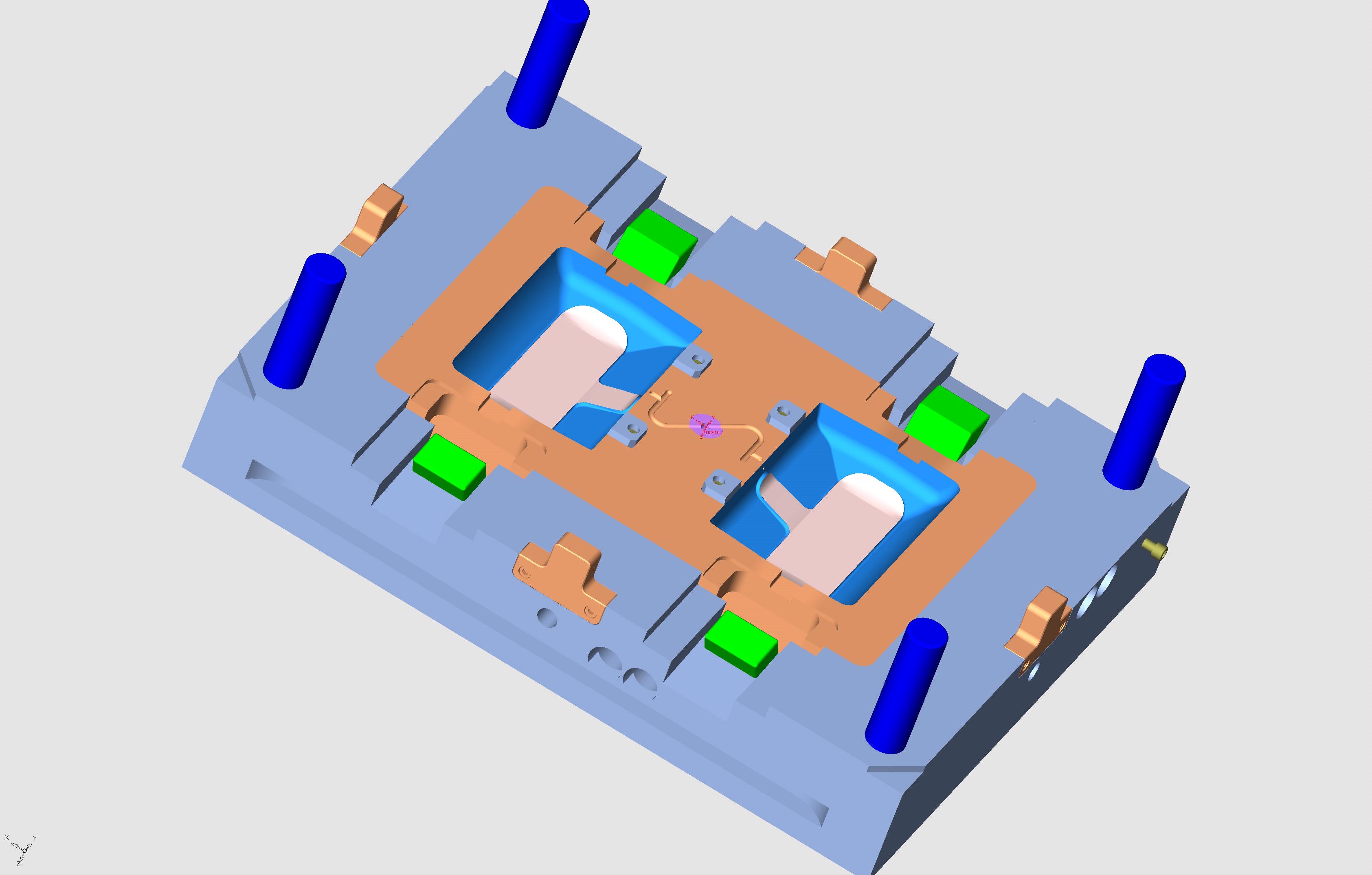

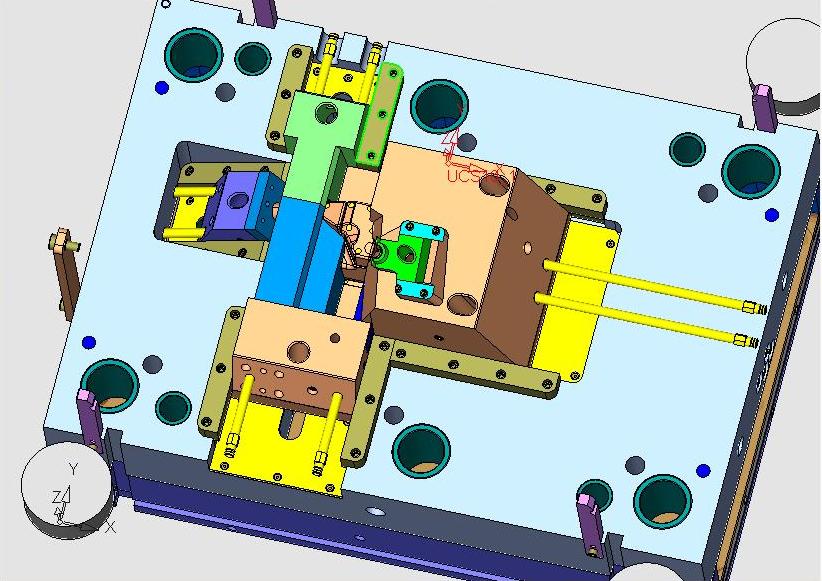

More designs a little more complicated, views of mold described above.

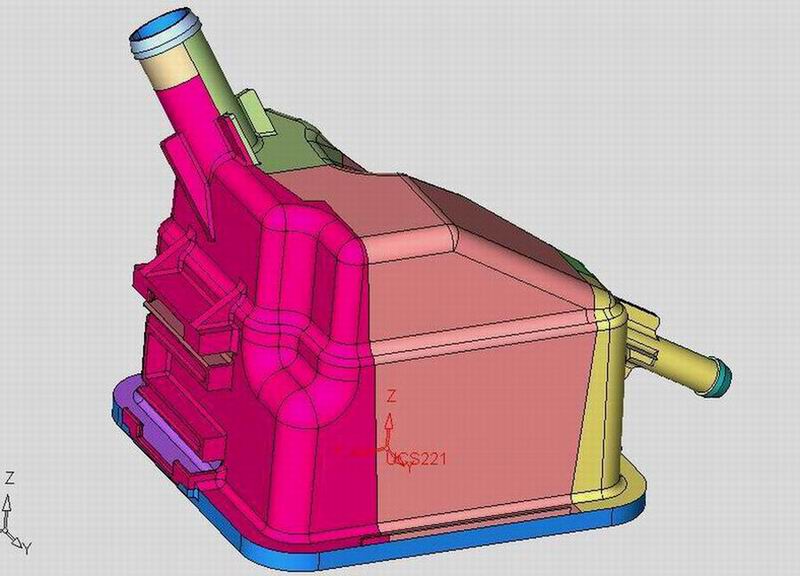

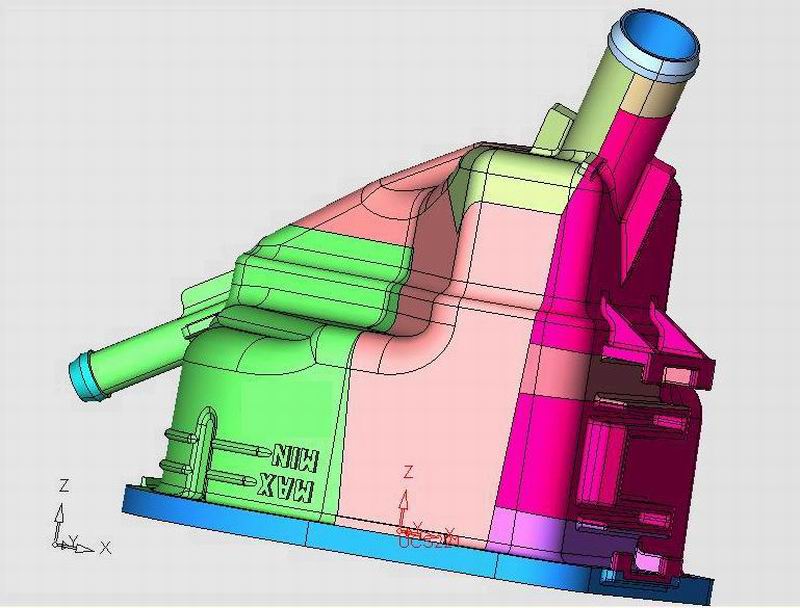

Finished Molded Part
